rig.spline

Spline IK/FK rig module with twist, stretch, and volume control

Overview​

rig.spline builds a hybrid IK/FK rig along a spline, supporting twist, soft volume preservation, and flexible skin joint creation. A good understanding of template chain configuration is crucial to constructing an effective rig.

How It Works​

  1. FK Chain:

    • Built similarly to core.bones except the last joint is also a controller.
    • Each FK joint corresponds to a control vertex (CV) of the FK spline.
    • FK controllers directly deform this base spline.

  2. IK Controllers:

    • A number of IK controllers are distributed along the FK spline.
    • The start and end controllers are placed at the beginning and end of the spline; others are spaced in between.
    • These IK controllers deform a second curve that is reconstructed and skinned from the FK spline.
    • The second curve contains 2× the number of IK controllers in control vertices.
    • Each IK controller affects two CVs, allowing axis scale to influence tangent behavior.

  3. Skin Joints:

    • Created along the second IK spline.
    • Count and placement are configurable.

⚠️ If too many FK controllers are used relative to IK controllers, the rebuilt curve may lack the detail to accurately follow the original FK spline.

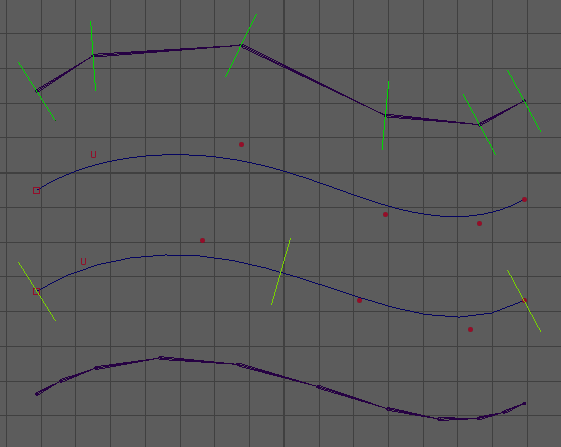

viewport example

Template Parameters​

  • numbers (int): Number of joints to create in the chain.
  • root (float3): Position of the first joint relative to parent.
  • transform (float3): Relative offset applied to each subsequent joint.

Options​

  • iks (int, min: 2, default: 3): Number of IK controllers. Final IK spline will have 2× this number in control vertices.
  • tweakers (enum, default: off): Adds secondary animation controllers per skin joint.
    • off: No tweakers.
    • chained: Tweakers follow a hierarchy.
    • unchained: Tweakers remain independent.
  • bones (int, default: 0): Number of skin joints to create. Defaults to 2× FK controllers - 1 if unspecified.
  • bone_length (enum, default: cvs): Distribution mode for skin joints.
    • parametric: Evenly spaced along the spline parameter.
    • cvs: Based on FK controller CV positions.
    • equal: Joints evenly spaced by length.
  • uniform_ik (bool, default: on): IK controller distribution mode.
    • on: Parametric placement.
    • off: Uniform length spacing.
  • fk_easing (enum, default: off): FK influence smoothing mode.
    • off: Each FK controller controls a single CV.
    • in: First controller affects first two CVs.
    • out: Last controller affects last two CVs.
    • in-out: Combines in and out easing.
  • default_stretch (bool, default: off): Enables stretch behavior by default.

Rig Hierarchy Options (from core.bones)​

  • do_pose (bool, default: off): Adds a pose node above the controller.
  • add_nodes (str | list[str]): Adds custom nodes in the hierarchy.
  • parent_scale (bool, default: off): Enables scale propagation between controllers.
  • flip_orient (bool, default: off): Flips controller root orientation for symmetry.

Orientation Controls​

  • rotate_order (enum, default: auto): Controller rotate order.

    ⚠️ Avoid changing unless necessary.

  • orient (enum, default: auto): Orientation mode.
    • auto: Automatically computed (recommended).
    • copy: Copy orientation from template.
  • aim (str, default: y): Main axis aligned toward next joint.
  • up (str, default: z): Secondary axis aligned using up_dir.
  • up_dir (enum, default: auto): Up vector calculation method.
    • auto: Based on chain geometry.
    • +x, -x, +y, -y, +z, -z: Scene-based up vectors.
  • up_auto (enum, default: average): Up vector smoothing mode for auto mode.
    • average: Average of triangle normals.
    • each: Up vector calculated per joint.
    • first: Uses first triangle’s up vector for all.
    • last: Uses last triangle’s up vector for all.
