Template Hierarchy

In this guide, we will build a facial rig based on skin joint deformation. This approach is generally more constrained than blendshape-based systems, but it offers significant advantages in terms of flexibility, robustness, and reusability. Historically, this type of setup has been well suited to television series production, where short schedules and frequent model iterations require rigs that can adapt quickly.

Joint-based facial rigs are a proven solution. They have been used successfully on many productions and provide a solid, predictable foundation on which more complex behaviors can be layered. While they may require a bit more discipline in their construction, they tend to scale better across assets and episodes.

In the following chapters, we will go through the core steps required to assemble such a system using Mikan:

• Building a template module hierarchy for the facial rig and its animator interface
• Adding logic through modifiers to create the actual functioning of the rig
• Recording facial poses and linking them to the animator controls

note

Even if you are more familiar with blendshape-based facial rigs, following this guide is still relevant. The type of system presented here is fully compatible with blendshapes, and many of the concepts apply regardless of the deformation method. While some sections may not need to be followed in detail, the parts related to pose connections and the animator interface remain essential.

Anchoring

Before building any facial structure, we first need to decide where the facial rig will attach to the rest of the character. It must be anchored to an existing part of the body hierarchy so that transforms, space, and evaluation remain consistent.

In our case, the body template is already set up. It consists of a simple biped, augmented with clothing modules and additional features. The head controller has already been created as part of the neck.legacy module, and it provides a natural attachment point for the facial rig.

This attachment point will serve as the root of the entire facial setup.

Using a Group Module as a Facial Root

Rather than connecting facial modules directly to the head controller, we introduce an intermediate core.group module. This group acts as the root container for the facial rig.

Group modules serve several purposes:

• They provide a clean structural boundary for a rig subsystem
• They allow all facial controllers to be selected at once
• They help organize the animator interface hierarchy
• They are used by animator tools that operate on controller groups (mirror, select, key...)

In practice, this makes the group module an essential building block for both rig organization and animator workflow, even if it does not introduce any deformation or logic by itself.

Creating the Facial Group Module

To set up the facial template:

1. Select the head hook output of the neck.legacy module
2. Add a core.group module at this connection point
3. Name the group module face

This face group now becomes the root of the facial rig hierarchy. All subsequent facial modules and controls will be created under this group, ensuring that the facial system remains clearly organized, easy to manage, and properly integrated with the existing body rig.

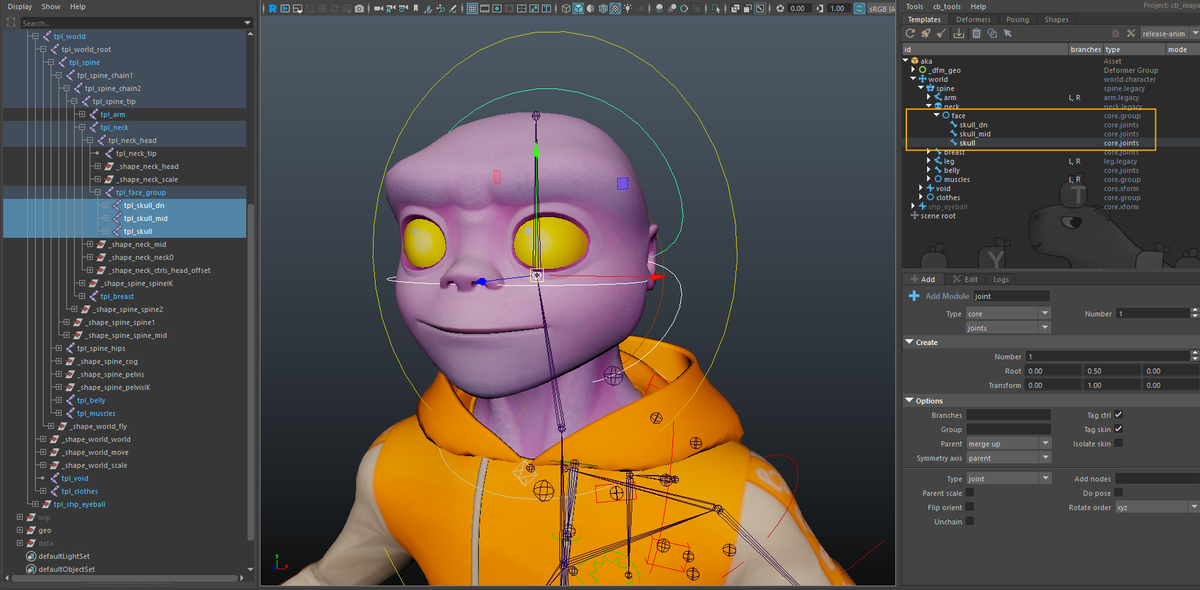

Skull hierarchy

The facial base starts with three parallel modules: skull, skull_mid, and skull_dn. These form the foundation for controlling the overall shape and motion of the face. This separation gives you the flexibility to create subtle rotations, offsets, and squash/stretch without affecting unrelated areas.

These modules are created using core.joints with the following option:

• Type: transform
  Each element is parented in a simple hierarchy and scales accumulate.

Once they are placed, enable toggle shapes to edit the controller shapes, then repeat the operation for each module.

Lower face

Jaws Controls

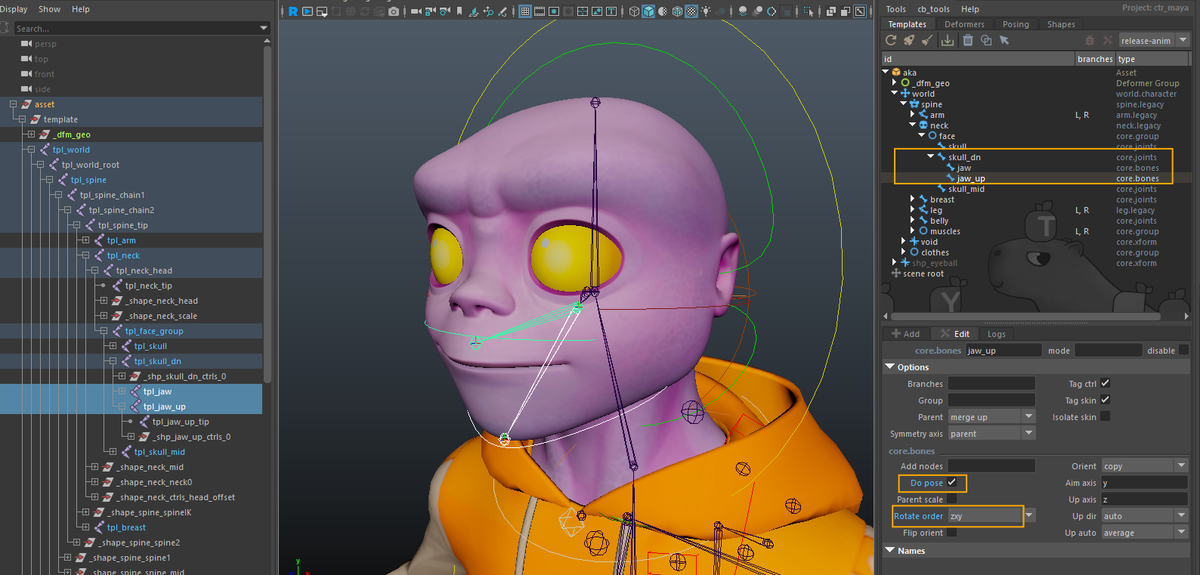

Next, we add two modules to open the mouth: jaw and jaw_up, parented under skull_dn.

These modules are created using core.bones, which generate an FK-style joint segment. The following options are used:

• Rotate order: zxy
  This reduces the risk of gimbal issues during jaw rotation.
• Add pose node: on
  This anticipates the creation of facial poses related to mouth animation.

The core.bones module is used here primarily to create a visible joint segment. This is especially useful later during skin binding, both for clarity and for selecting the appropriate skin joints. Beyond that, these controls do not require complex orientation behavior.

In most cases, the jaw controllers can remain in world orientation rather than being explicitly oriented along the bone. This generally results in simpler and more predictable manipulation, although the exact setup may vary depending on personal or production preferences.

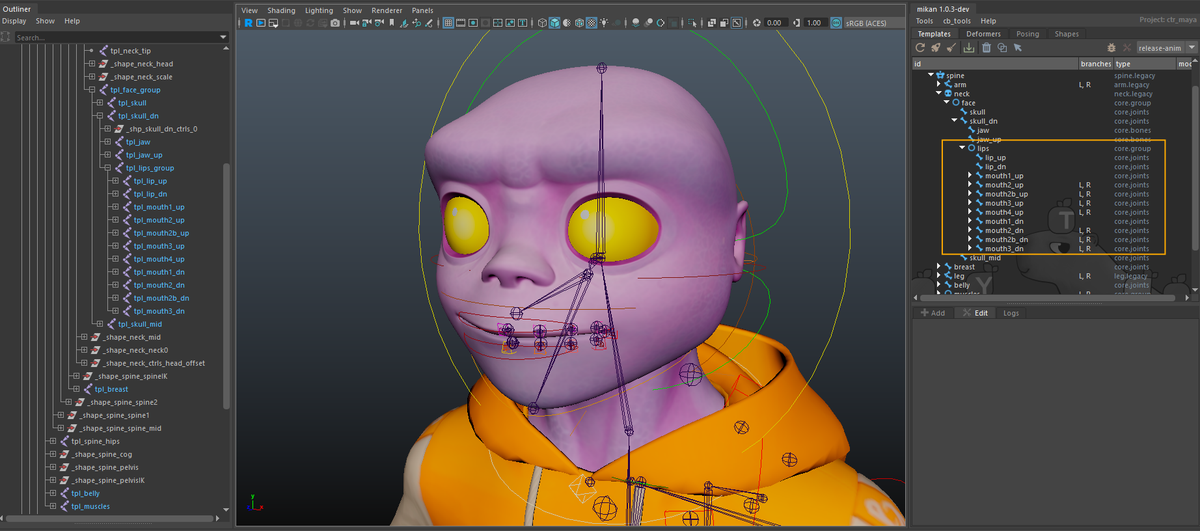

Lips Deformation

We start by creating a global mouth controller. This controller acts as the top-level control for the entire mouth system and is used to apply broad transformations affecting all mouth and lip elements at once.

The mouth controller is created using a core.joints module, parented under skull_dn.

• Type: transform
  Global controllers are expected to propagate scale in a simple and predictable way. Using a transform-based setup ensures clean scale transmission across the mouth system.

Next, under skull_dn, we create a lips group. Unlike the mouth controller, this group is not meant to drive deformation directly. Its role is organizational.

The mouth system is built in three conceptual layers, with the global mouth controller sitting above them.

Primary Lip Controls

Inside the lips group, we add the main directional controls using core.joints modules:

lip_up and lip_dn. These define the overall motion of the upper and lower lips.

• Type: transform
• Add pose node: on

lips_corner. This controller drives the corners of the mouth.

• Flip orient: on
  For symmetric lip controls, translation consistency is preferred over rotational symmetry. Enabling flip orient ensures predictable behavior when manipulating paired controllers.
• Type: transform
• Add pose node: on

These controllers provide broad, readable motion and will later propagate their influence to more localized controls.

note

At this stage, none of these controls are connected to deformation logic. The goal here is to define the animator-facing structure first. All mechanical connections and behavior will be implemented in the next chapter.

Mouth Segmentation Controls

We then add a set of mouth segmentation controllers using core.joints modules:

mouth1_up, mouth2_up, mouth3_up, mouth4_up, mouth5, mouth4_dn, mouth3_dn, mouth2_dn, mouth1_dn

note

For the lip zone controllers, we’ve set up a default of mouth1 > mouth4 for segmentation. This provides a minimal setup that works for most cases.

You can of course add more tweakers depending on the character’s morphology and production requirements. If you choose to extend the number of lip controllers, remember to adapt the modifiers accordingly to ensure correct propagation of motion and poses.

In our demo character, we added a few extra tweakers to achieve more refined deformations. You’ll see how it works in practice.

All of these controllers share the following options:

• Flip orient: on
  Again, this favors consistent translation behavior when manipulating symmetric controller pairs.
• Add pose node: on

For mouth2, mouth3, mouth4, and mouth5, we also enable:

• Branches: [L, R]

These controls split the mouth in a circular fashion and are used to shape the mouth globally. They are the primary layer for creating expressions such as smiles, frowns, stretches, and compressions.

info

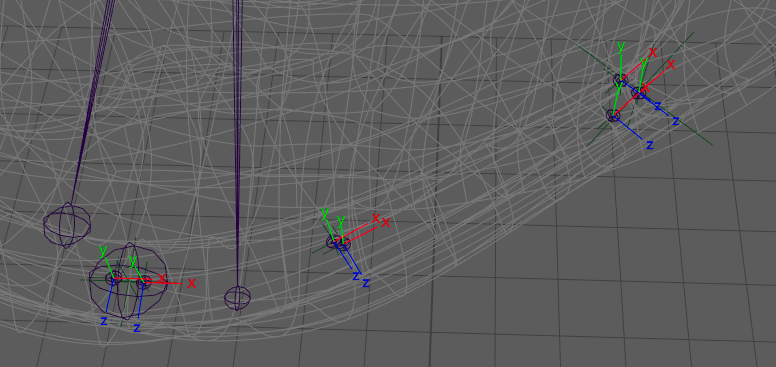

Orientation and Position Matter!

Take care when placing these template joints. Both the orientation and initial position of each joint are critical: rotations and scales applied to these controllers will be used for facial poses, and accurate positioning is essential to achieve smooth lip roll in/out operations later.

Make sure the joints are aligned logically along the lip curve and follow the natural deformation flow.

Lip Tweak Controls

For each mouth segmentation controller, we create a corresponding lip tweak controller. Each lip controller is parented to its respective mouth segmentation controller and positioned at the same location.

lip1_up, lip2_up, lip3_up, lip4_up, lip5, lip4_dn, lip3_dn, lip2_dn, lip1_dn

• Parent scale: on
  This allows lip controls to inherit scale from the mouth segmentation layer and can also be exploited for animation-specific behaviors.
• Flip orient: on
• Add pose node: on

They are dedicated to lip-only deformation and are primarily used for skinning and detailed effects such as lip roll. This separation allows precise control over lip behavior while keeping the overall mouth shaping clean and manageable.

Teeth and Tongue

Under jaw, we first create the lower teeth controllers using core.joints. The same setup will be mirrored for the upper teeth under jaw_up.

We create the following hierarchy:

• teeth_dn parented directly under jaw
• teeth_tip_dn child of teeth_dn
• teeth_bend_dn positioned at the side, near the root of the last molar
• teeth_bend_tip_dn child of teeth_bend_dn, placed on the edge of the corresponding teeth

The lower teeth controllers act like a lattice parented to the jaw. Animators can offset, rotate, or scale individual teeth segments independently, without affecting jaw motion directly. This provides fine control for teeth deformation while keeping the overall motion predictable.

• teeth_dn and teeth_up remain directly under their respective jaws without repositioning. This ensures that jaw rotation can be used to drive teeth motion in offset.
• teeth_bend_* controllers are placed at the back of the mouth at the root of the last molars.
• *_tip_* controllers sit on the front edge of each tooth segment, giving additional control over the tips.

teeth_bend options:

• Branches: [L, R]
• Flip orient: on
• Parent scale: on
  This will allow riggers to choose whether scale is transmitted along the sides of the dental rows

and for the tips:

• Type: transform
  Simple enough for translation/rotation without complex hierarchy

Next, we create the tongue chain.

To maintain control over the global scale and orientation of the tongue, we first add a core.joints controller: tongue_base parented under teeth_dn. This will allow neutral orientation and direct control over tongue scale.

We then create a core.bones chain for the tongue with 3 joints by default (more can be added if needed)

Options for the tongue modules:

• Do pose: on

And to auto-orient the chain:

• Orient: auto
• Up axis: x
• Up dir: +x
  Explicitly setting the direction ensures consistent rotation, especially important given the tongue’s curved shape

info

Throughout the lower face, we’ve added a variety of controllers that can be used to define facial poses and shapes.

Don’t hesitate to add additional elements if you feel more control is needed. For example, if you want finer control over the chin, you can create a new controller parented under the jaw.

By following this approach, you have all the building blocks to construct the hierarchy that fits your production needs. This philosophy applies not only to the lower face but also to other areas of the rig: start with a solid base, then add controllers as needed to give animators precise control over facial deformation.

Mid face

The skull_mid module is used as the connection layer between the upper and lower parts of the skull. Later, using modifiers, we will define how constraints propagate between skull, skull_dn, and the jaw modules. This setup is especially useful for cartoon-style rigs, where a high level of flexibility is required to bend the head shape or manage squash and stretch effects across the face.

At this stage, however, we are not building that logic yet. Here, we focus on the elements that are parented under skull_mid and act as simple offsets.

In practice, this mainly concerns the nose rig. Anything related to broader, surface-level deformations such as cheeks or facial volume will be handled later using a secondary skin layer, once the primary structure is in place.

For now, we keep things intentionally simple. The goal is to add a few lightweight controllers that can be used later for posing and skin deformation, without introducing complex mechanics.

All modules in this section are created using core.joints, which provides everything needed to drive skin joints and record poses.

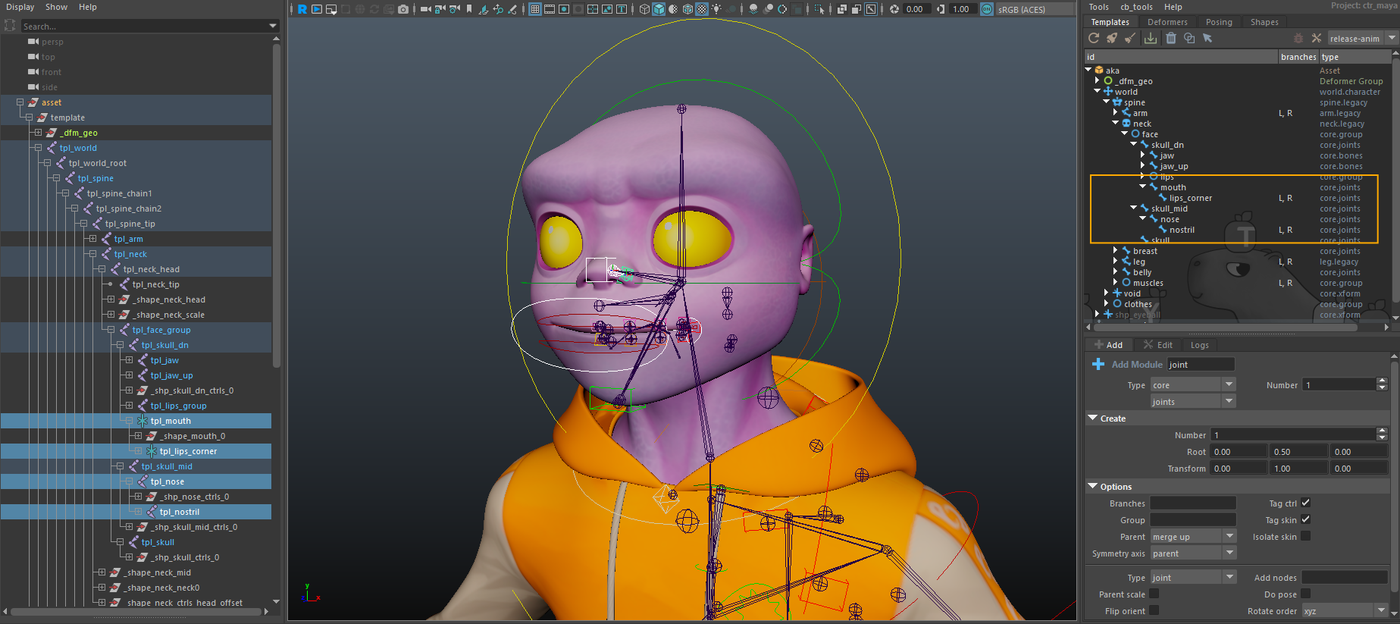

Under skull_mid, you can add the following modules: nose and nostril.

The exact placement of these controllers depends on the type of deformation you want to give animators access to, as well as any specific needs you may have for facial poses later on. There is no single correct layout here, only informed choices.

Recommended options, depending on your needs:

• Type: transform
  Use joint only if you explicitly need scale to affect deformation.
• Branches: [L, R]
  For mirrored controls, such as nostrils.

At this point, these modules act purely as offset controllers. They are not yet connected to the rest of the facial logic. All interactions and constraints involving skull_mid will be implemented later, once the full facial hierarchy is in place.

Upper Face

The upper face contains more moving parts than the previous sections. Here, we lay down the structural skeleton for eyes, eyelids, eyebrows, and ears. In this chapter, we focus primarily on the eye system, which requires a solid and carefully thought-out hierarchy.

The eyes usually involve several interacting layers: deformation of the skull around the socket, animation of the eyeball itself, and deformation of the eyelids. The goal here is not to fully rig everything yet, but to establish a robust base structure that will support animation and deformation later on.

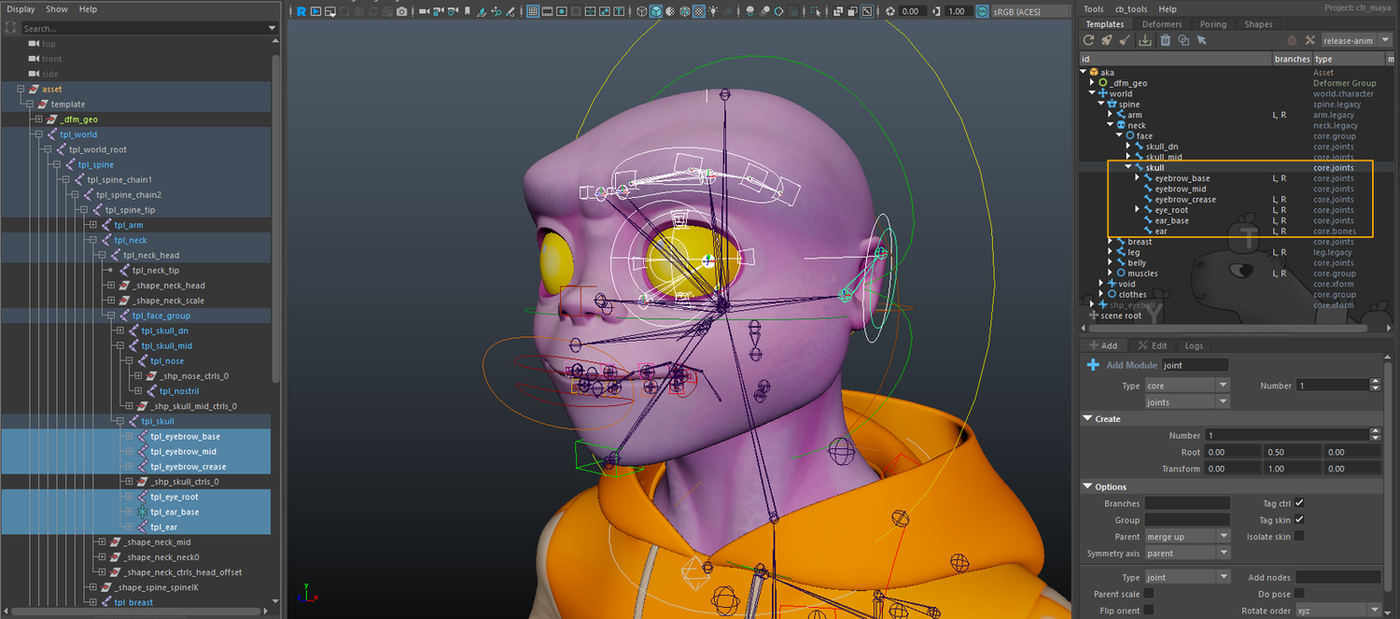

Eye hierarchy

We begin by creating a top-level controller that encapsulates the entire eye system. This controller allows animators to reposition the eye inside the skull without breaking the internal hierarchy.

Under skull, create a core.joints module named eye_root with the following options:

• Branches: [L, R]
• Add pose node: on
• Flip orient: on
  Translation consistency is generally preferred over rotation for symmetrical eye controls.

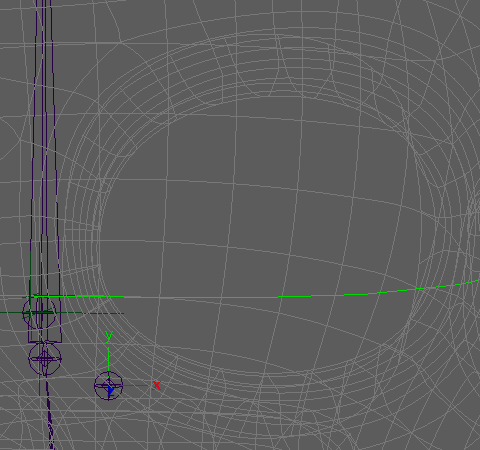

This controller should be placed at a strategic location. If you intend to use it for squash and stretch, it is recommended to position it at the base of the eye opening and orient it following the general curvature of the skull.

The eye_root acts as a protective container for the entire eye rig and provides a clean offset layer for animation.

Eyeball and Scale Space

In cartoon rigs, eyeballs often require non-uniform scaling. To support this while keeping rotations stable, we introduce a dedicated scale space.

First, create a core.xform module named eye_socket. This module defines a controlled scale space, typically matching the proportions coming from modeling.

Under eye_socket, add a core.joints module named eyeball. This controller will drive eye animation (look-at systems, poses, offsets, etc.). Special care must be taken to orient the eyeball correctly, especially if the eye is not aligned with the world axes or if it lives inside a non-uniformly scaled space.

Options for eyeball:

• Add nodes: inf
  Adds intermediate transforms that can later receive constraints with identity matrices.
• Add pose node: on
• Rotate order: zxy
  This order allows the eye twist to remain animatable regardless of orientation, which is especially useful when connecting eye poses later on.

This hierarchy allows both the eyeball and the eyelids to rotate correctly inside a scaled space, which is critical for clean deformation.

Eyelids

In this guide, eyelids are driven using rotation-based controllers that deform the geometry through clusters. The structure is therefore built with rotation in mind.

All eyelid controllers are created using core.joints and are parented directly under eye_socket, with zeroed translations. This ensures they rotate cleanly around the eyeball center.

We create the following controllers:

• eyelid_up, eyelid_dn
  Primary controllers for blinking.
• eyelid_bend_up, eyelid_bend_dn
  Parented respectively under the main eyelid controllers, used to offset and shape blinks.
• eyelid_corner_ext, eyelid_corner_int
  Controls for the outer and inner corners of the eyelids.
• eyelids_socket_up, eyelids_socket_dn
  Used to adjust the position of the eyelid crease.

For all eyelid controllers, use:

• Rotate order: yzx
  This order is optimized for the vertical movement of the blink.

At this stage, these controllers are not yet connected to deformation logic. They simply establish the control structure that will later be wired through modifiers and skinning.

Eyebrows

The last elements to set up in the upper face are the eyebrows. In this guide, we deliberately keep the setup simple: a global controller combined with a small set of tweak controls.

Start by adding a core.joints module named eyebrow_base. Place it slightly toward the inside of the face, taking into account the rotations you may want to perform later. Its position should anticipate the range of motion required for eyebrow expressions.

Next, we add the tweak controllers. While eyebrows are often built using fully independent controllers, here we can still rely on core.joints. This allows us to create all eyebrow controls in a single module and separate them using an option.

Create a chain of 3 or 4 joints named eyebrow with the following options:

• Unchain: on
  Separates the joints into independent tweak controllers.
• Add pose node: on
• Flip orient: on
  Favors consistent translation for symmetrical manipulation.

This setup provides enough control to shape eyebrow expressions while keeping the hierarchy lightweight and easy to extend if needed.

Ears

Ears follow a structure similar to the tongue, with a clear separation between a global control and a deformation chain.

First, create a base controller for the ear using core.joints named ear_base. Unlike other facial elements, the pivot of this controller can be placed slightly inside the head. This allows the ear to rotate or slide along the skull, which can produce useful secondary motion if the character design allows it.

Then, add a deformation chain using core.bones named ear. The number of joints depends entirely on the character’s morphology. For human characters, one or two joints are usually enough.

At this stage, option choices are mostly left open. You should select what best fits your needs, as the guide does not impose a strict setup for ear deformation.

info

Controller shapes and visual design are not covered in this guide. You will need to define colors and shapes that make sense for animators. A common convention is to visually distinguish global controllers from tweak controls. Curved shapes often suggest rotational behavior, while angular shapes can indicate translation. How far you take this is entirely up to you.

Secondary offset layer

In this section, we add a secondary offset layer dedicated to skin deformation, primarily for the cheek area. These controllers are used to add localized surface detail on top of the main facial rig. This approach allows you to sculpt subtle deformations such as cheek compression, sliding, and secondary motion, without overloading the primary expression controls or compromising their readability.

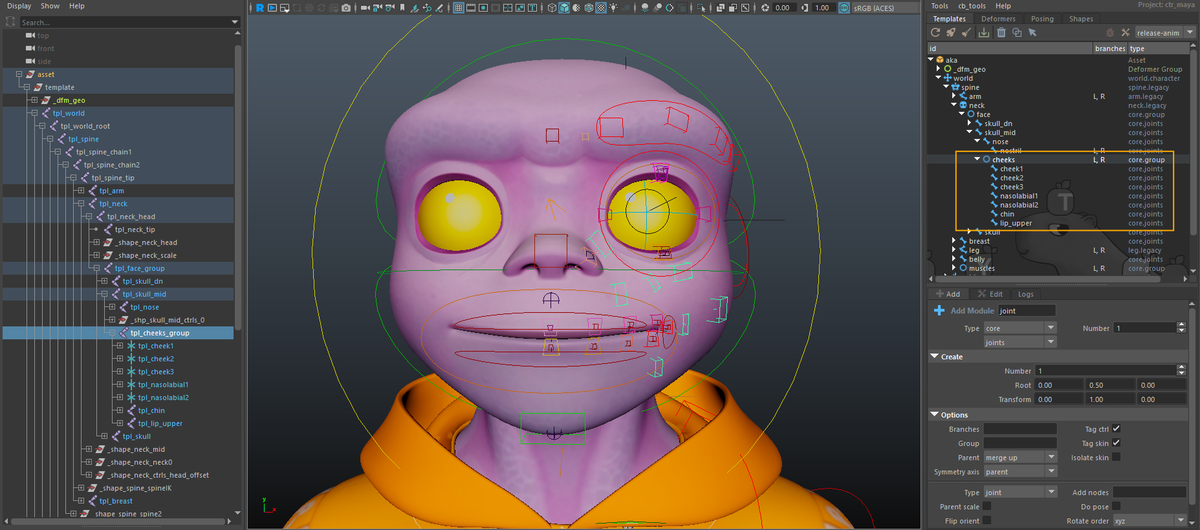

We start by creating a core.group module named cheeks, parented directly under skull_mid with the following option:

• Branches: [L, R]
  Using branches at the group level allows left and right cheek controls to be mirrored automatically. This avoids having to manage symmetry on a per-module basis and keeps the setup cleaner as the system grows.

Under the cheeks group, we add several pairs of controllers using core.joints. The exact number and placement depend on the character’s morphology and the level of refinement required, but a small, well-placed set is usually sufficient.

Adjust the options as needed:

• Flip orient: on
• Add pose node: on

These controllers will later be constrained to the main facial rig through dedicated modifiers, allowing them to function as a true secondary skin layer. There are many valid ways to implement this kind of system, depending on how much influence you want these offsets to have over the final deformation.

We will cover the required constraints and setup strategies in the next chapter, where this secondary layer will be fully integrated into the facial rig.
